Terminator Hydraulic Module Replacement

Download PDF

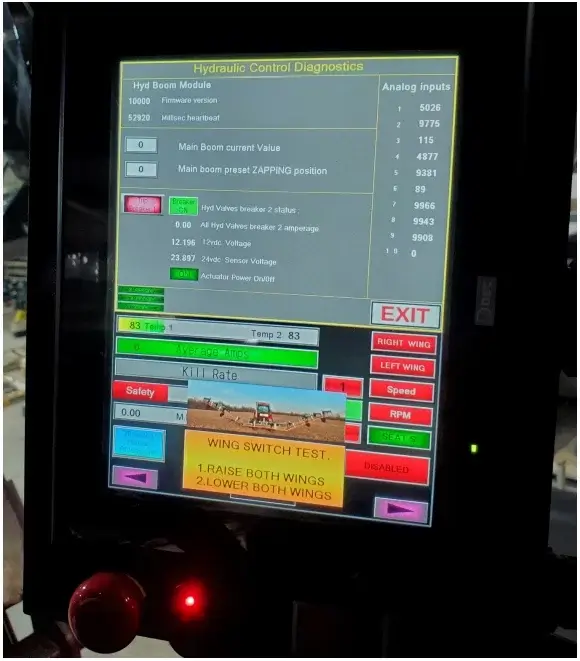

**It is recommended to lower boom to lowest position
without touching fenders or row dividers.
Tools Needed:
7/16″ gear wrench
3/8″ nut driver
Small flat headed pocket screw driver

1. Take photo of wire routing and connections inside of the hydraulic
   module
2. Unplug all harnesses from module (use the small screw driver to
   assist)

3. Remove the 2 left 3/8″ headed screws on the top of this bracket as
   well as on the bottom of this bracket.
4. Pull bracket away from large pipe on left side
5. Remove 2 x 1/4″ nuts (7/16″ gearwrench)
6. Remove the module
7. Install new module DO NOT OVERTIGHTEN NUTS!!!
8. Using the photo from step 1 reconnect harnesses.
