Control Module Replacement Instructions
Series 200 and Series 300
The modules are located inside the control panel located on the right-hand side of the cart.
Before servicing these parts, turn off the tractor and remove the key!

1. Open the control panel and take a picture for future reference purposes.
2. The module being replaced is located in the top LEFT corner of the control panel. It will be labeled “Series 200 Module”. (see Figure 1)
3. Remove five green plugs by moving orange levers on each end of the plug. Pull down on the top levers and push up on the bottom levers to eject the terminal plugs. (see Figure 1)
4. Remove four Phillips-head screws that secure the module to the panel. (see Figure 2)
5. Located to the right of the original module is an aluminum Din Rail. Try fitting the new
   module in the original location. In most cases the new module can be maneuvered in
   place by allowing the aluminum Din Rail to go between the plastic base of the module
   and the aluminum cover portion with label. (see Figure 3)
6. If new screws are supplied, install the new module using the new screws. If no screws
   were supplied, use the same four Phillips-head screws and existing holes. (see Figure 4)

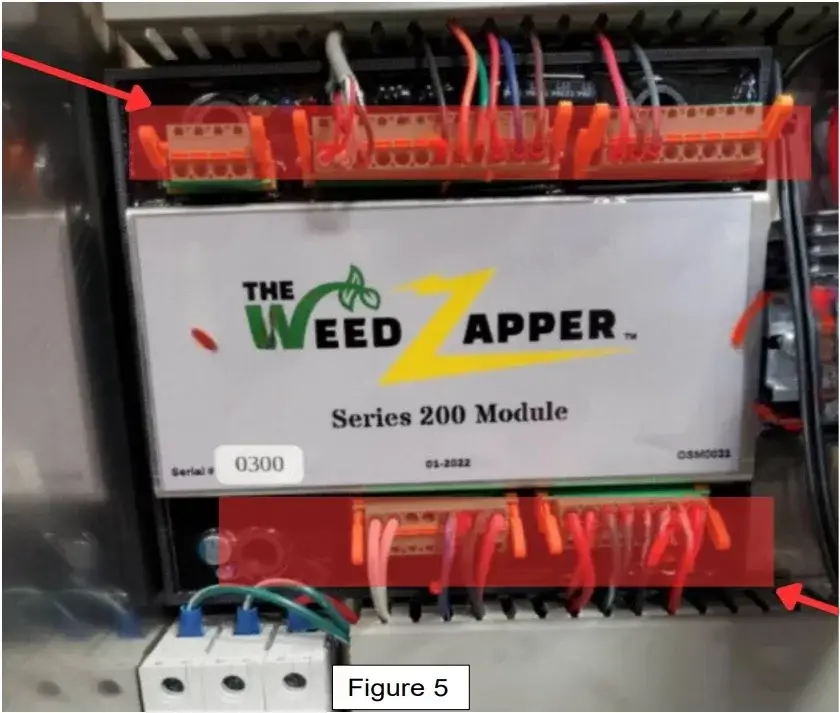

7. Install the plugs in the same location as they were on the original module. Make sure
   the plugs are fully seated and the orange levers are back in their original position.
   (see Figure 5)
